Catenary Screenshots

iPhone

About Catenary

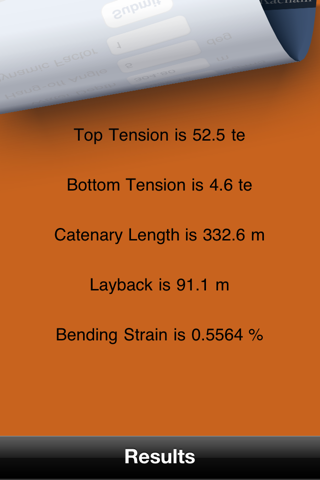

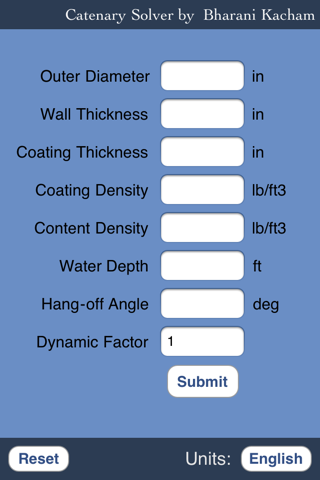

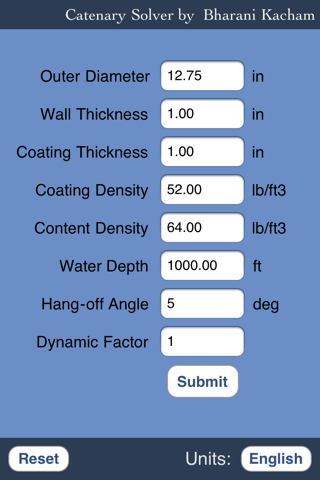

Catenary app has been developed as a quick and useful tool for installation engineers, installation analysts, riser engineers and others working in the offshore Oil & Gas industry. This application can be used in meetings or elsewhere as a quick reference tool to obtain numbers on Steel Catenary pipelines instead of going to a desk pc to obtain the requisite information. The user is required to input a few details about the pipe in question, the water depth, hang-off angle (w/ vertical, for e.g. 4.5deg) and if required dynamic amplification factor to obtain catenary top tension, bottom tension, catenary length, layback distance and sag bend bending strain.

In future versions, flexible risers and umbilicals will be added and based on user feedback more results will be incorporated. For more accurate results, an FEA analysis should be performed and this app's intent is to be used as a reference tool only.

What's New in the Latest Version 1.1

Last updated on May 12, 2011

Old Versions

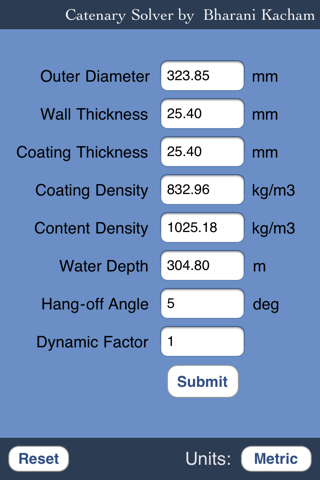

Added choice to switch between English and Metric units. When Metric units option is chosen, the units and the values entered in English units are automatically converted. The same is true for choosing English units when values are entered in metric units.

Added another result for bending strain in the sag bend of the catenary.

If you download please do not forget to rate the app and give some feedback on improving the app.

Version History

1.1

May 12, 2011

1.0

Mar 8, 2011
