Logic Analyzer
$7.99
2.1for Mac
Age Rating
Logic Analyzer Screenshots
About Logic Analyzer
Logic Analyzer helps you to debug your circuits in a simple and cheap way.

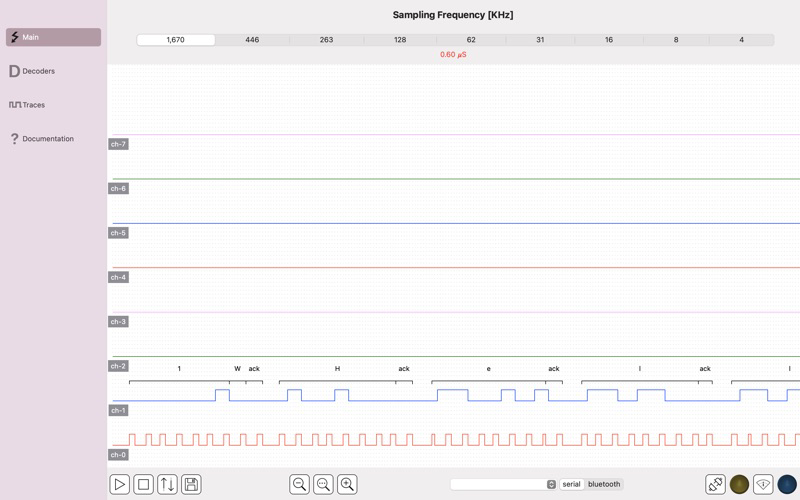

It acquires up to 8 digital signals and shows it on the screen of your MAC.

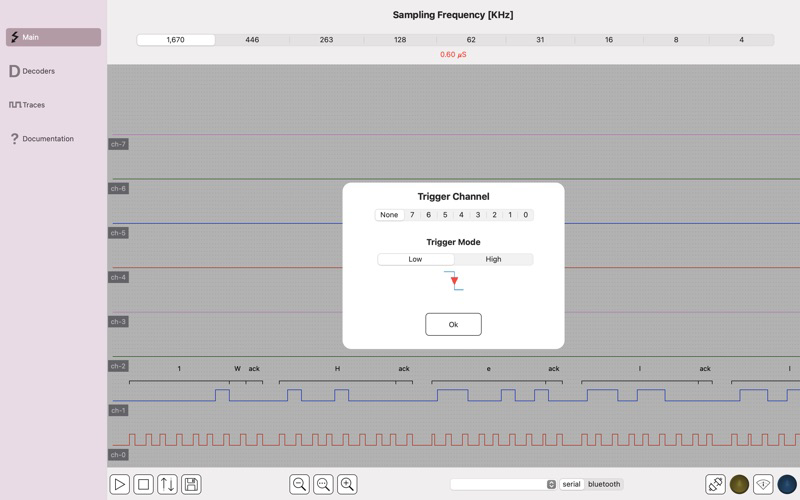

You can enable a trigger on one of the available channels to start reading signals when the channel goes up or down.

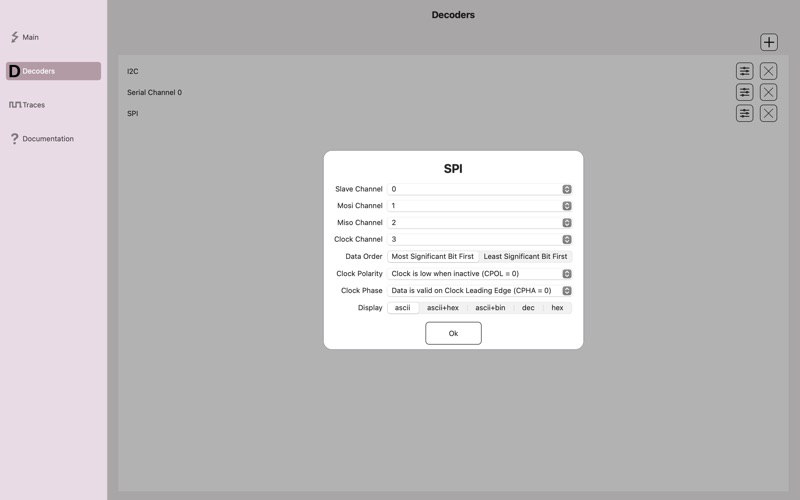

The app provides decoders for the most used protocols (Serial, SPI and I2C) which will show characters directly over the signal.
It's based on Arduino Mega and data are transferred from Arduino to the MAC via USB or via Bluetooth BLE allowing you to make measurements also on devices which are far from you.
To make it working, you need:
1) Arduino Mega or ESP32
2) A measurement sketch that you can download from my site for free
3) Adafruit Bluefruit LE - nRF8001 Breakout / Shield, if you use Bluetooth BLE
It acquires up to 8 digital signals and shows it on the screen of your MAC.
You can enable a trigger on one of the available channels to start reading signals when the channel goes up or down.
The app provides decoders for the most used protocols (Serial, SPI and I2C) which will show characters directly over the signal.
It's based on Arduino Mega and data are transferred from Arduino to the MAC via USB or via Bluetooth BLE allowing you to make measurements also on devices which are far from you.
To make it working, you need:
1) Arduino Mega or ESP32
2) A measurement sketch that you can download from my site for free
3) Adafruit Bluefruit LE - nRF8001 Breakout / Shield, if you use Bluetooth BLE
Show More
What's New in the Latest Version 2.1
Last updated on Feb 15, 2021
Old Versions
Bug Fixing and performance improvements
Show More
Version History
2.1
Feb 15, 2021
Bug Fixing and performance improvements
